GAE System 6CX-RA: Coaxial 2-Way Loudspeaker In Tubular Housing


Key Features:
High fidelity passive loudspeaker system for music and speech reproduction in a tubular format. The design incorporates a high power N-Dym 6,5-inch transducer with 1,5-inch voice coil in a sealed cabinet made from Vinyl and a 30mm aluminium baffle together with the coaxial integrated N-Dym HF-Driver with 1-inch voice coil. The low loss crossover design optimises the even radial dispersion pattern. The smooth dispersion pattern enables low feedback in concern to microphone operation.
Stacks Image 9
System 6CX-RA
General:
The System 6CX-RA is a passive high power background / foreground loudspeaker system with a radial dispersion of 90°. The smooth frequency and phase response in line with the even acoustical dispersion allows low feedback microphone operation even at close distances.
With its high sensitivity of 91dB SPL/1m for 1W the System 6CX produces an impressive 115dB RMS/1m with 200W.
The acoustical bandwidth is 95Hz - 19KHz (+/- 2,5dB with controller) and the phase response within +/- 45°.
The non critical impedance response with a minimum of 6,1 Ohm@255Hz allows the safe operation of multiple System 6CX-RA on one channel of a professional grade power amplifier.
The System 6CX-RA housing is made of welded 10,5mm vinyl and a 30mm aluminium baffle. The connector is a screw terminal for 2,5mm wires.
The mechanical design allows e.g. a penduolos mounting by the M12 thread on the back wall. Additional M6 threads are in the backwall to allow the fitting of safety steels.
Stacks Image 44

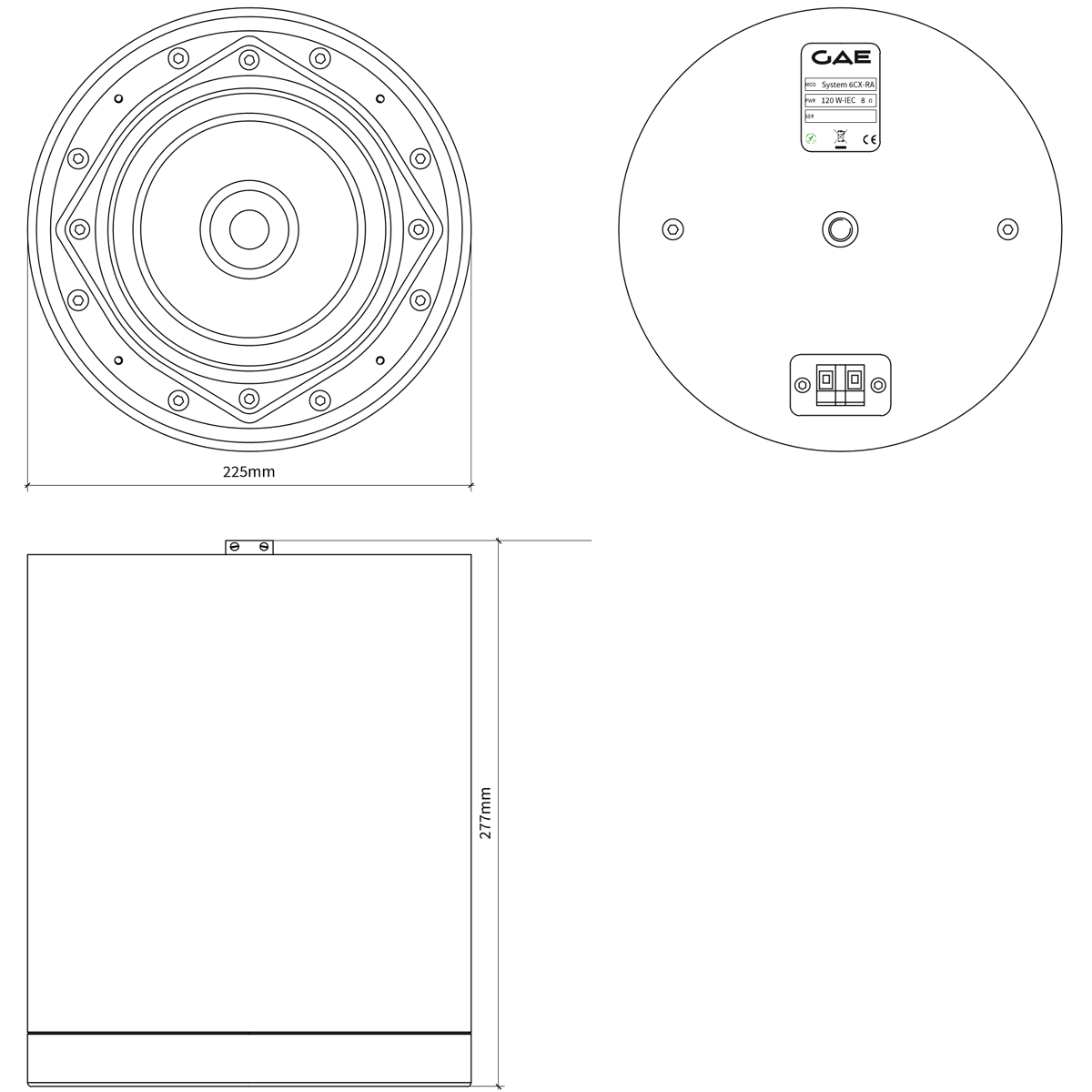

System 6CX-RA physical dimensions
Architectural:
The System 6CX-RA is a compact system in a cylindric design. It is remarkably accepted in sophisticated installations needing a high fidelity and high power playback system with smart mounting solutions . The system incorporates an exceptionally reliable Coaxial transducer with neodymium magnets and efficient voice coil cooling. The musical quality can easy be underlined with a matching sub-/low woofer system as the GAE BR12N extending the performance down to 40Hz.
The speakers housing dimensions are only 277x225mm (HxD).
A special designed protective front grill with a highly permeable acoustic foam cover is recessed into the baffle design.
Connectivity is provided by screw terminal or a flame proof screwed cable gland. Different specialsed mounting fixtures are available or can be factory supplied to customer specification.
Applications:
High Quality distributed and paging systems * Background music systems for clubs and restaurants * Exhibition and audio in museums
